What we’ve been working on is a visual tool: you can import and export JSON, but unlike previous products, the focus is more on a user interface than it is on a tricked-out CodeMirror-based code editor. This is indicative of some deeper changes.
Vector tiles split data processing and rendering
Mapbox GL being in-browser makes it possible to build a much simpler style editor. CartoCSS, our previous styling langage, compiled down to Mapnik XML in a rather slow build step. And then the styles needed a Mapnik install to run.
Mapnik does many jobs: it parses geospatial data formats, projects that data, applies fancy styles and anti-aliasing, and then creates tiny and efficient PNG & JPG files.
In stark contrast, the world of Mapbox Vector Tiles and Mapbox GL detaches the rendering from the data processing: one tool turns geodata into tiles, another tool turns tiles into images.
While the MBTiles & CartoCSS standards have had time to grow, and now have quite a few implementations, vector tiles are admittedly bleeding edge, and the projects we’re starting to release are some of the first examples of what they can do.
From building the new Mapbox Studio first as a code interface, and then as a UI, I’m entirely convinced that visual is the way forward. We can make a new promise to people: that they will no longer run into silly syntax errors, or have three abstractions to debug simultaneously. There’ll no longer be a language that’s a bit like CSS, but not exactly: the GL Style Spec opens us up to a whole new universe of tooling that works extremely well with JSON - something that would never happen with a custom syntax. And with no parse errors in-between changes, we can smoothly transition between differerent variations of a style and save every change in an undo/redo history.

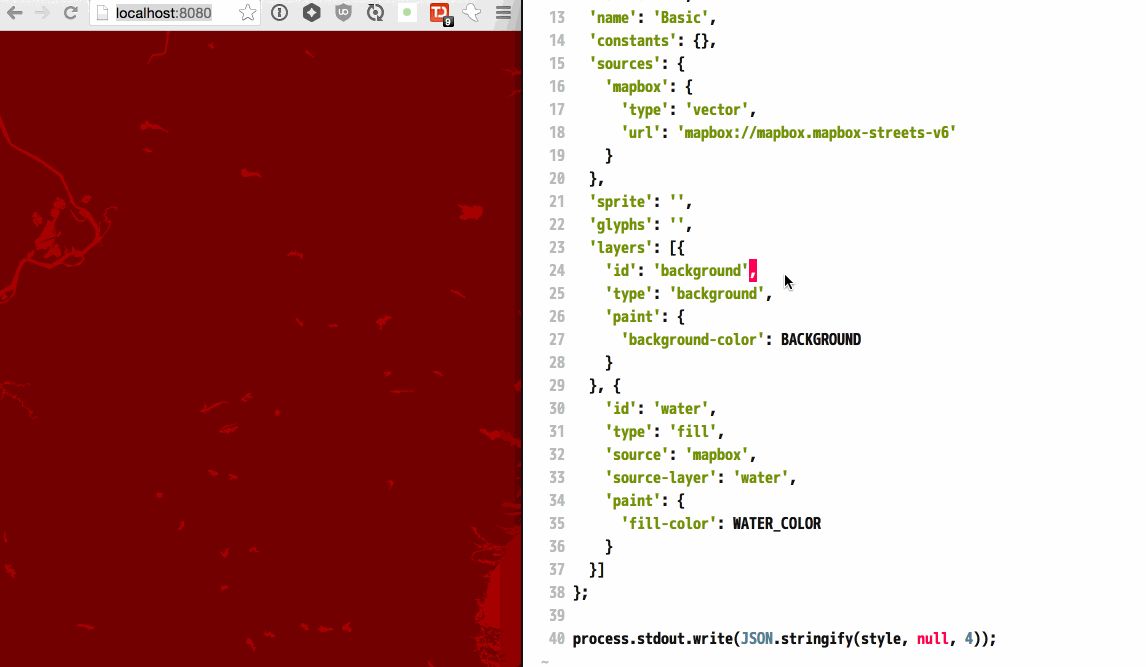

The code flow
What’s really exciting (besides, of course the new Mapbox Studio) is that Mapbox GL makes it simpler to build powerful software with maps. There should be lots of good options, in many different styles.
There’s one bonus feature, inspired by a few people’s comments about JSON being a rather strict language. The example includes converters for YAML, toml, and JSON5, so you can use a terse, comment-supporting language as input, if you’d like.
A layer in YAML
- id: 'background'
id = 'background'
type = 'background'
background-color = '#f0f'
I think a lot about errors: it seems like error-handling is one of the most important parts of any development environment.
Just an example
This is just one example of a tool for a GL style development workflow: there are many other ways to do it, in other languages with different wheelies. The whole of the code is shorter than most Gulp build scripts.
Stay tuned for Mapbox Studio, and check out the codeflow example on GitHub.
